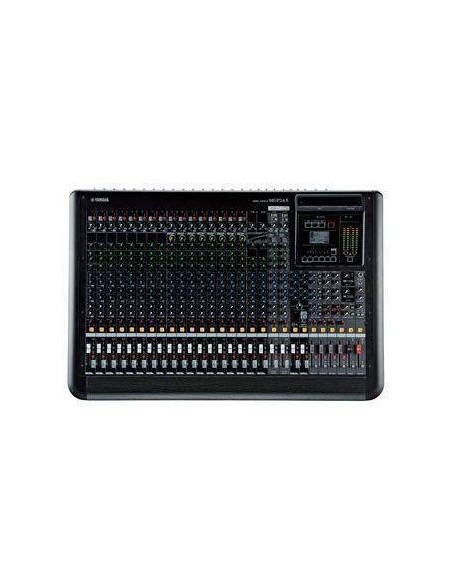

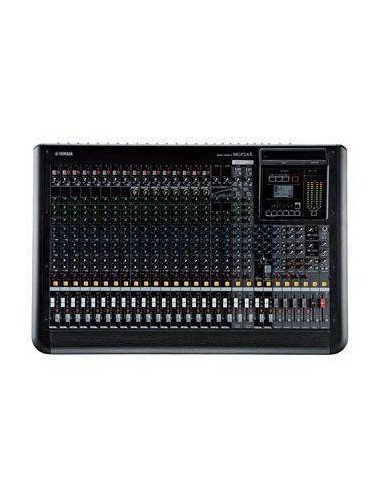

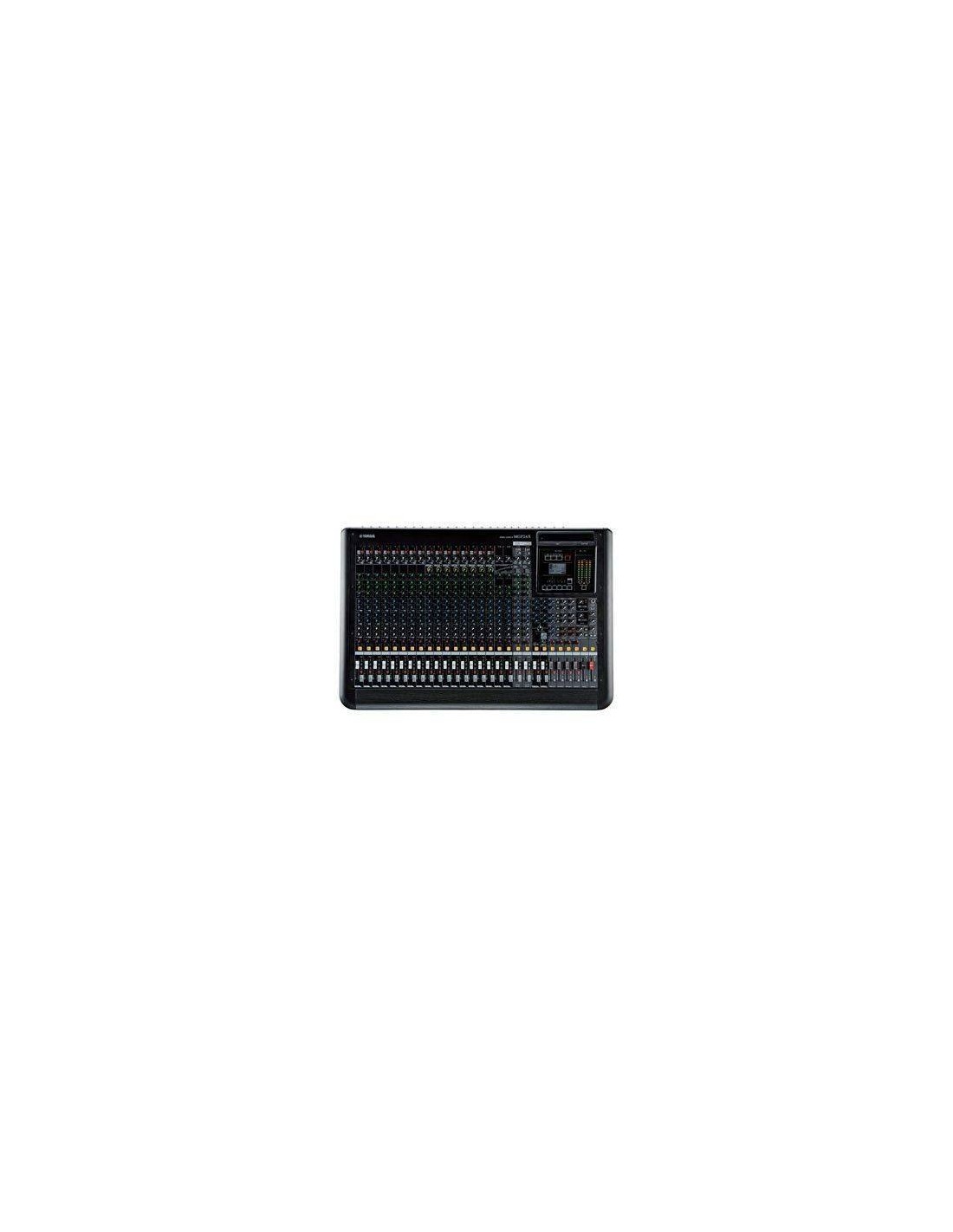

Yamaha MGP 24X
441986
1.379,00 €
Impuestos incluidos
. En stock. Entrega en 24/48h
Yamaha MGP-24X de 24 ch. ideal para una alta calidad de sonido con efectos digitales SPX
Yamaha MGP24X
- - 16 Entradas Micro con 48V Phantom y HPF por Canal
- - 24 Entradas de Línea (16 mono y 4 estéreos)
- - 6 Envíos Aux + 2 Envíos de Efectos
- - 4 Buses de GRUPO + Bus ST
- - 2 Salidas de Matriz
- - 1 Salida Mono
-
Outline
| Mixing capability | Mixing channels | 24 Line Inputs (16 mono and 4 stereo) |
|---|---|---|
| GROUP | 4 GROUP Buses + ST Bus | |
| AUX | 6 AUX Sends + 2 FX Sends | |
| MATRIX | 1 Matrix out | |
| On-board processors | FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control) | |
| I/O | Mic inputs | MIC: 16 (INPUTS HPF: 100Hz 12dB/oct) |
| Phantom power | 48V phantom power per channel | |
| Line inputs | LINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo | |
| Digital I/O | USB Device, iPod / iPhone |
General specifications
| Total harmonic distortion | 0.02% (20Hz-20kHz@ +14dBu) | |
|---|---|---|
| Frequency response | +0.5/-1.0dB 20Hz - 20kHz, refer to the nominal output level @1kHz | |
| Hum & noise level | Equivalent input noise | -128 dBu Equivalent Input Noise |
| Residual output noise | -94 dBu Residual Output Noise | |
| Crosstalk | -74dB @ 1kHz | |
| Power requirements | 100-240V 50Hz/60Hz | |
| Power consumption | 86W max | |
| Dimensions | W | 819mm (32.2\") |
| H | 169mm (6.7\") | |
| D | 565mm (22.2\") | |
| Net weight | 15.5kg (34.2lb) |
- Número de canales
- 24 canales
